130T Liquid Injection Molding Machine Producing Silicone Sealing O Ring

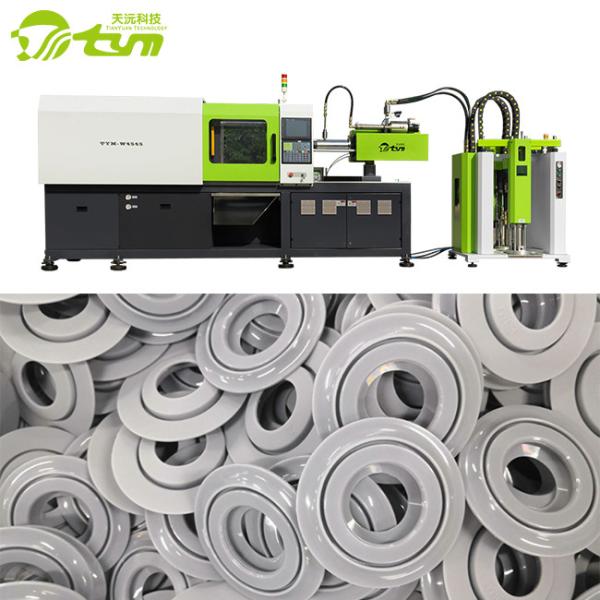

A production cell built around an TYM-W4545 produces the LSR hormone rings in large unit volumes. As the main contractor, TYM bears the complete responsibility. The most stringent requirements with regard to hygiene and product quality must be met during production.
About TYM
For lsr injection molding process, the finishes lsr parts has much better transparency and the tearing strength rebound resilience, changing resistance, heat stability, water tolerant, expansibility, weather resistance and less flashing.
About Machine.
1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.
2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.
3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.
4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.
5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.
6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.
7) Precise cold runner LSR mould, which can make the LSR product producing with higher-quality, higher efficiency, longer life, save more production cost.
The other style horizontal lsr machine
| ITEM | DESCRIPTION | UNIT | TYM-W4545 | TYM-W5050 | TYM-W5555 |
| Injection Unit | Shot Volume | g | 165 | 300 | 300 |
| Injection Rate | g/s | 30 | 30 | 30 |
| Injection Pressure | Kg/cm2 | 700 | 700 | 700 |
| Clamping Unit | Clamping Force | T | 130 | 150 | 160 |
| Opening Stroke | mm | 200-700 | 200-700 | 200-700 |
| Tie-Bars Space | mm | 450*450 | 500*500 | 550*550 |
| Ejection Force | T | 4.3 | 4.3 | 4.3 |
| Ejection Stroke | mm | 150 | 150 | 150 |
| Pump Pressure | Mpa | 21 | 21 | 21 |
| Others | Motor Power | KW | 12.1 | 12.1 | 12.1 |
| Machine Weight | T | 5.2 | 5.3 | 5.6 |
| Machine Dimension | m | 4.0*1.2*1.9 | 4.2*1.4*1.9 | 4.5*1.6*2.0 |
The Horizontal LSR machine for the applicable scope:
1) Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
2) Liquid silicone medical part, as like the capsule, protective mast, catheter, balloon, medical belt etc.
3) Silicone high-voltage cable accessories,
4) Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
5) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
6) Silicone baking tool, cake mold, chocolate mold etc.
Welcome to consult and visit us.
